Product introduction:
This motorized transfer handling trolley is powered by a battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Trolley is able to run between two perpendicular tracks and the trolley is also could run on an L-form track or S-form track or curved track. Also, motorized transfer handling vehiclet is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another.
Features of motorized transfer handling trolley :
1.The series flat car has adjustable speed, saves transportation time and is easy to operate by wireless remote control.
2.The components adopt Chinese military grade components and can also be matched with Siemens and other partner components.
3.The trackless transfer trolley on the cement floor can realize 360° direction steering, which is suitable for long-distance, low-frequency unfixed routes.
| Model | BWP-2T | BWP-50T | BWP-150T | |
| Rated load (T) | 2 | 50 | 150 | |
| Table size | length(L) | 2000 | 5500 | 10000 |
| Width(W) | 1500 | 2500 | 3000 | |
| Height(H) | 450 | 650 | 1200 | |
| Wheel Base (mm) | 1200 | 4200 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ500 | Φ600 | |
| Motor Power (Kw) | 1 | 5 | 15 | |
| Battery Capacity(Ah) | 180 | 330 | 600 | |
| Battery Voltage(V) | 24 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 3.3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 174 | 265.2 | |

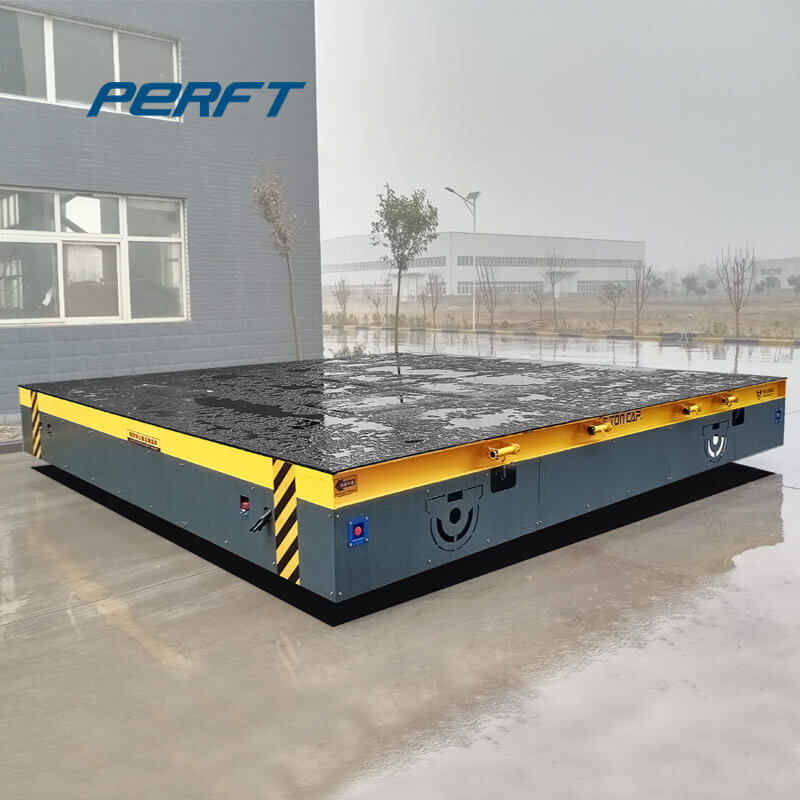

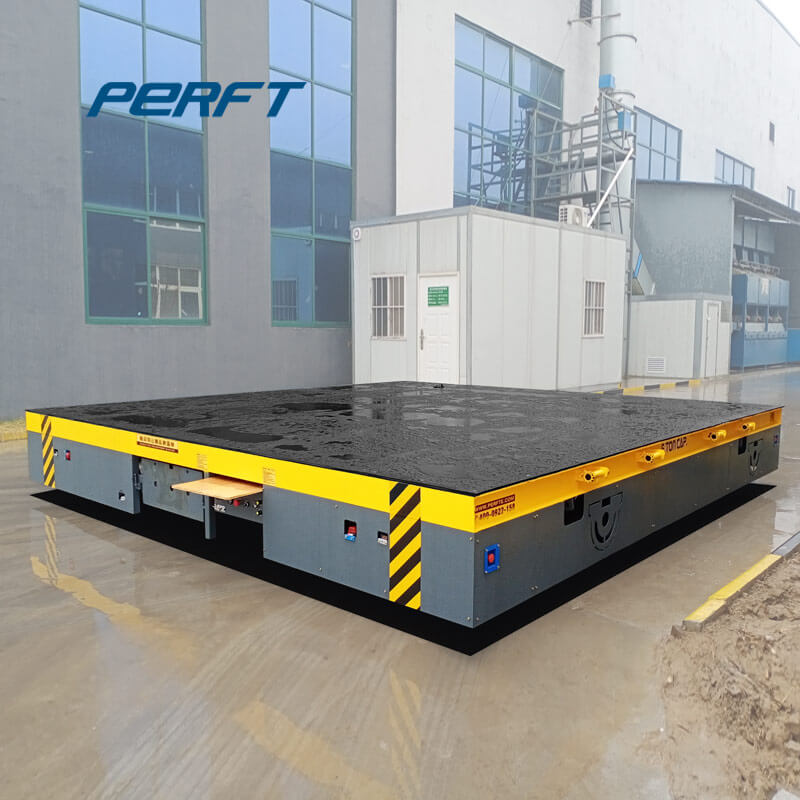

Heavy-duty battery-powered trackless transfer cart features a custom truss frame for stable, safe heavy-load transport. Boasting 100-ton max load, flexible steering, long-lasting battery and intelligent control modes, it eliminates fixed rail restrictions. Ideal for steel, wind power, shipbuilding and heavy machinery industries, it boosts logistics efficiency, protects workpieces and cuts operational costs for industrial material handling.

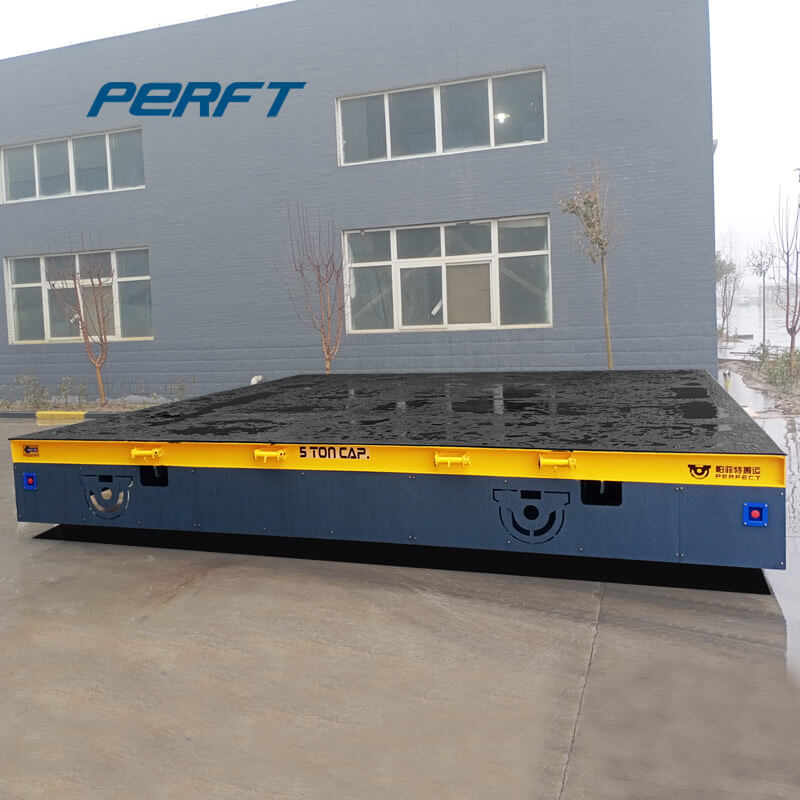

5-ton BWP battery-powered trackless transfer cart is designed for industrial heavy material handling. Featuring trackless flexible steering, built-in LED work lights and low-energy battery drive, it supports 360° flexible movement and all-weather operation in dim and complex workshop environments. With a durable steel structure and complete safety systems, it delivers high efficiency, zero emissions and customizable configurations for diverse industrial logistics scenarios.
